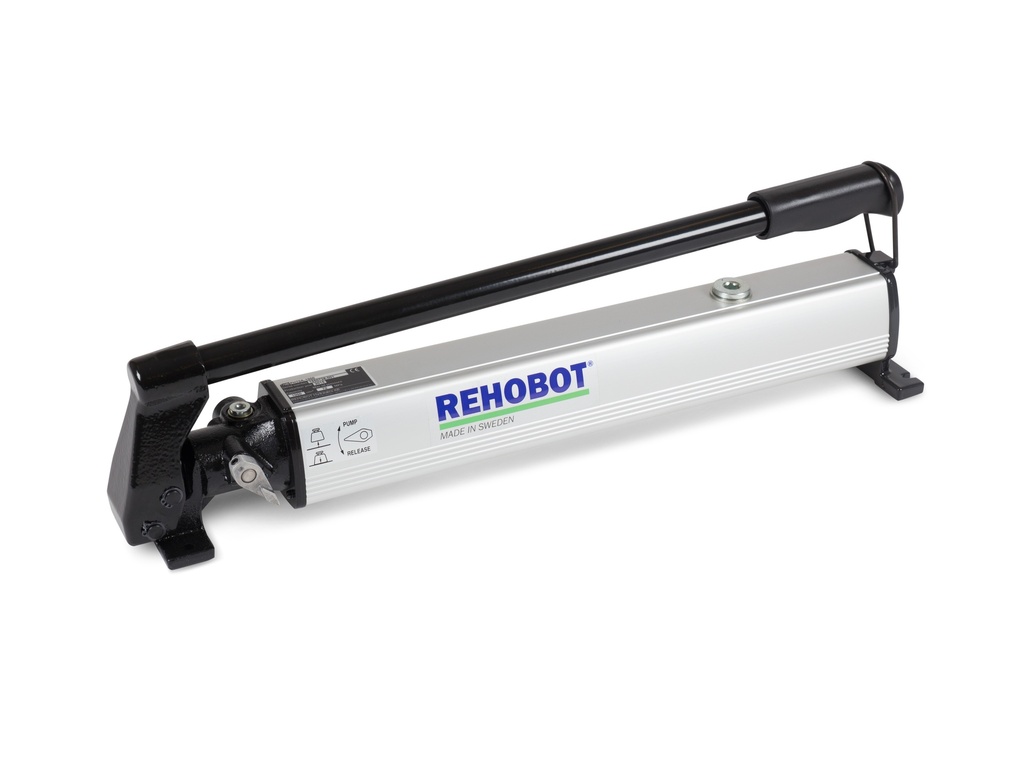

PH70A-1000 - Hand pumps PH

https://lenmatec-group.odoo.com/web/image/product.template/1567/image_1920?unique=caddd9d

289.50 € 289.5 EUR 289.50 €

289.50 €

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Metric Measurements

    Name

    Item code

    Working press. MPa

    Eff. oil vol. cm³

    Cap. cm³/stroke

    Pump force N

    PH70A-600

    49100

    70

    600

    2.9

    450

    PH70A-600/LS201

    49108, Hose length = 2m

    70

    600

    2.9

    450

    PH70A-1000

    49101

    70

    1000

    2.9

    450

    PH70A-1000/LS201

    49109, Hose length = 2m

    70

    1000

    2.9

    450

    PH80A-600

    49102

    80

    600

    2.9

    515

    PH80A-1000

    49103

    80

    1000

    2.9

    515

    Imperial Measurements

    Name

    Item code

    Working press. psi

    Eff. oil vol. in³

    Cap. in³/stroke

    Pump force N

    PH70A-600

    49100

    10000

    36.6

    0.2

    450

    PH70A-600/LS201

    49108, Hose length = 78 in

    10000

    36.6

    0.2

    450

    PH70A-1000

    49101

    10000

    61

    0.2

    450

    PH70A-1000/LS201

    49109, Hose length = 78 in

    10000

    61

    0.2

    450

    PH80A-600

    49102

    11600

    36.6

    0.2

    515

    PH80A-1000

    49103

    11600

    61

    0.2

    515


    Operating Instruction

    Dimensional Drawing

    Spare part list
